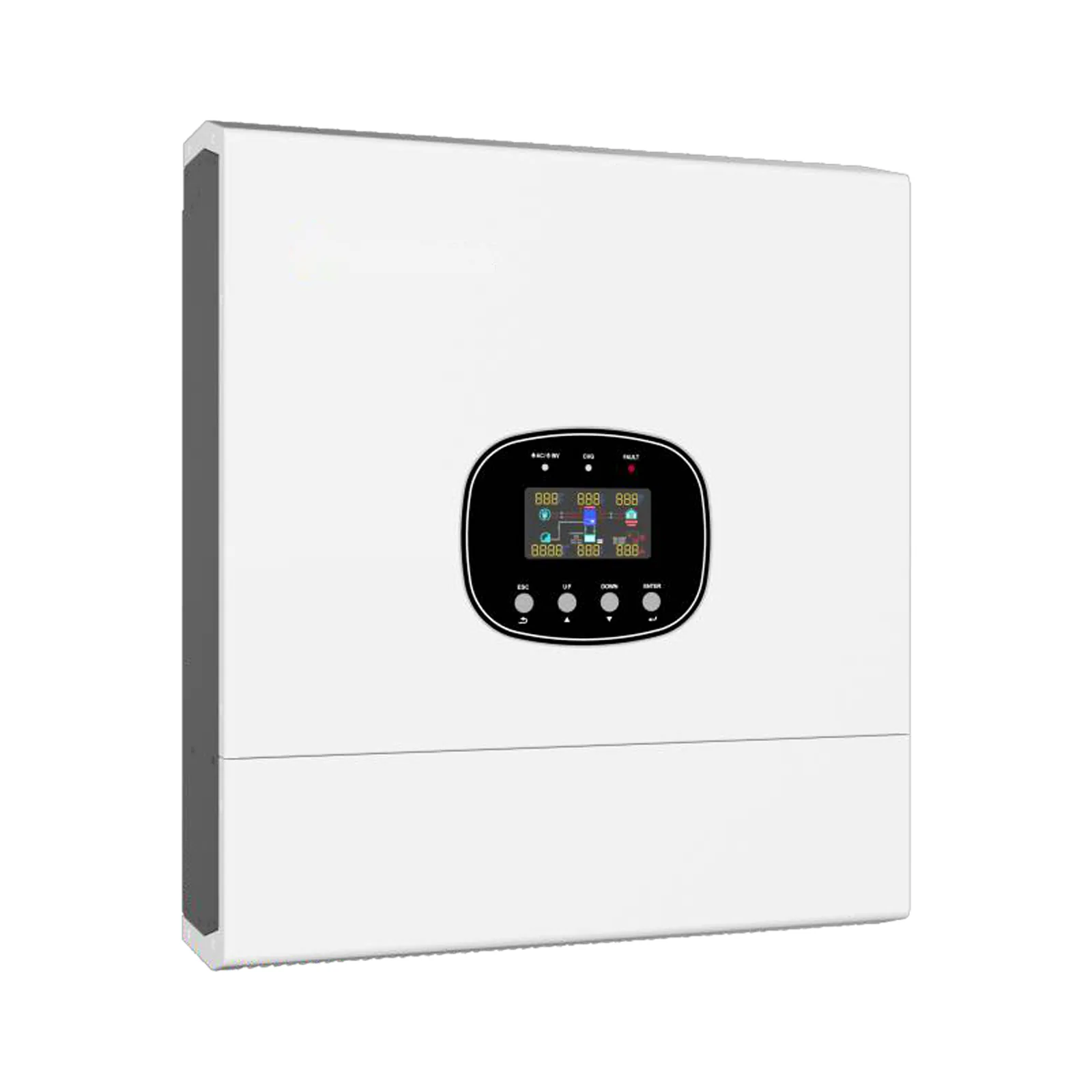

SPE 3.5-7KTL HVM-G2

Name: SPE 3.5-7KTL HVM-G2
SKU: SPE 3.5-7KTL HVM-G2

Hybrid inverter · Single-phase · 3.5 – 7 kW

3.5 – 7 kWSingle-phaseIP20

Price on request

Get a quote WhatsApp Datasheet

3.5 – 7 kWRated power

Single-phasePhase

1 – 2MPPT trackers

96.5 %Max. efficiency

Technical data

PV input
	SPE 3500TL HVM-24G2	SPE 5000TL HVM-G2	SPE 6000TL HVM-G2	SPE 7000TL HVM-G2
Max. PV input power (W)	4000	5000	8000	8000
Max. PV input voltage (V)	500
MPPT voltage range (V)	60 – 450
Start-up voltage (V)	80
Max. input current per MPPT (A)	22	22	16	16
Max. short-circuit current per MPPT (A)	28	28	22	22
Number of MPPT trackers	1	1	2	2
PV strings per MPPT	1	1	2	2
AC output
Rated output power (W)	3500	5000	6000	7000
Max. apparent power (VA)	3500	5000	6000	7000
Rated AC voltage (V)	230
Rated AC output current (A)	15.2	21.8	26.1	30.4
Phase	Single-phase
Rated AC frequency (Hz)	50/60
Total harmonic distortion (THDi) (%)	<5
Power factor	0.8 leading to 0.8 lagging
Backup output power (W)	3500	5000	6000	7000
Generator input	Yes
Max. parallel units	–	9	9	9
Backup nominal AC output voltage (V)	230
Backup nominal AC output frequency (Hz)	50/60
Backup switch time	10 ms typical, max. 20 ms	10 ms typical, RCD 20 ms max (single unit); <30 ms (parallel)	10 ms typical, RCD 20 ms max (single unit); <30 ms (parallel)	10 ms typical, RCD 20 ms max (single unit); <30 ms (parallel)
Battery
Nominal battery voltage (V)	24	48	48	48
Battery voltage range (V)	20 – 32	40 – 60	40 – 60	40 – 60
Battery overcharge protection voltage (V)	32	60	60	60
Efficiency
Max. efficiency (%)	96.5
European efficiency (%)	95.5
General data
Dimensions (W x H x D) (mm)	370 × 430 × 125	370 × 430 × 125	422 × 460 × 125	422 × 460 × 125
Weight (kg)	10.5	10.8	13.5	13.8
Operating temperature range (°C)	−20 – 50
Topology	Transformerless
Cooling	DC fan
Ingress protection (IP rating)	IP20
Relative humidity (%)	5 – 95
Max. operating altitude (m)	<2000
Communication
Communication interfaces	Wi-Fi; 4G
