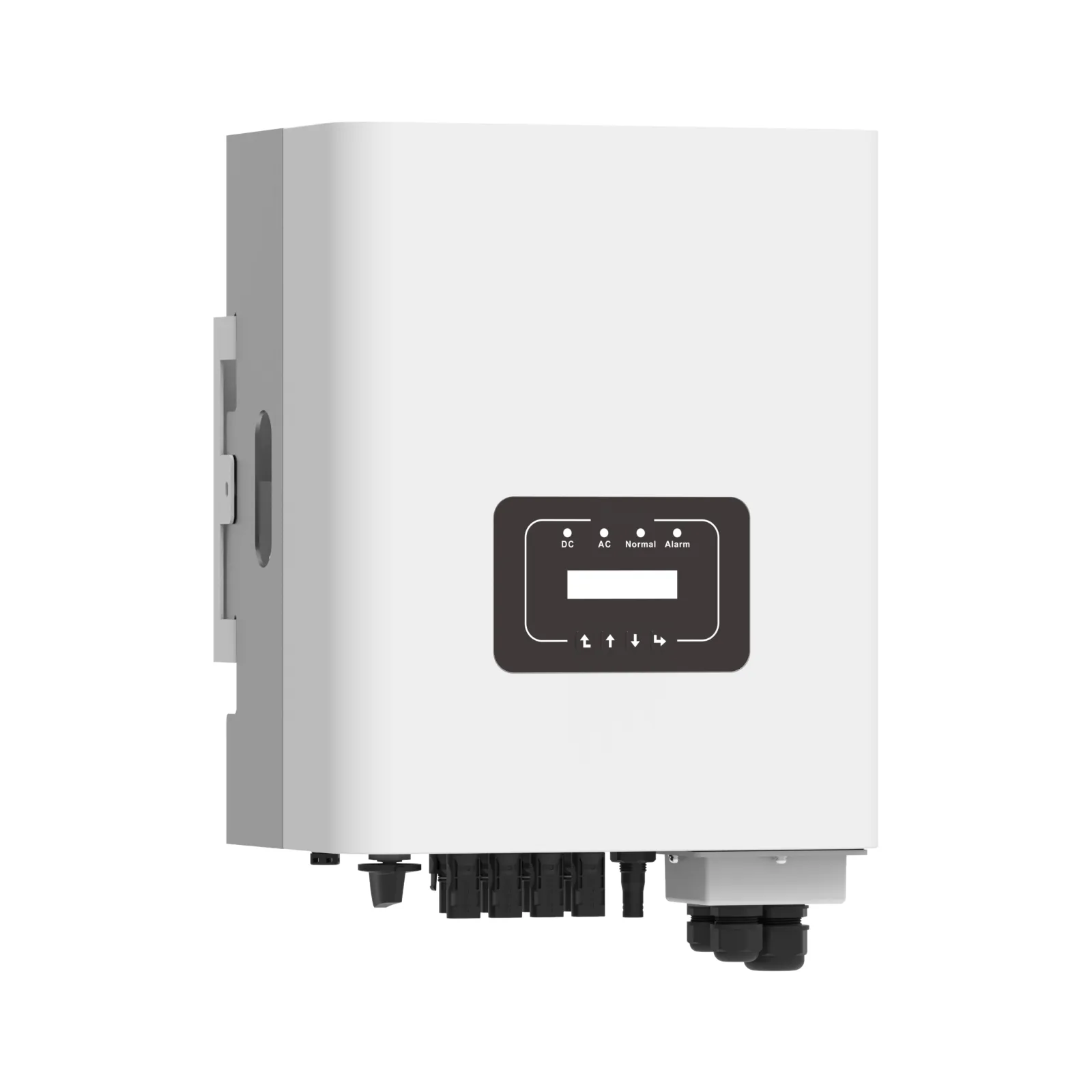

SUN-9-10.5K-G02P1-EU-CM2
String inverter · Single-phase · 9 – 10.5 kW
9 – 10.5 kWSingle-phaseIP65
Price on request
9 – 10.5 kWRated power
Single-phasePhase
2MPPT trackers
97.7 %Max. efficiency
Technical data
| SUN-9K-G02P1-EU-CM2 | SUN-10K-G02P1-EU-CM2 | SUN-10.5K-G02P1-EU-CM2 | |
|---|---|---|---|
| PV input | |||
| Max. PV input power (W) | 13500 | 15000 | 15800 |
| Max. PV input voltage (V) | 550 | ||
| Start-up voltage (V) | 80 | ||
| MPPT voltage range (V) | 70 – 500 | ||
| Rated PV input voltage (V) | 360 | ||
| Max. input current per MPPT (A) | 26 | ||
| Max. short-circuit current per MPPT (A) | 39 | ||

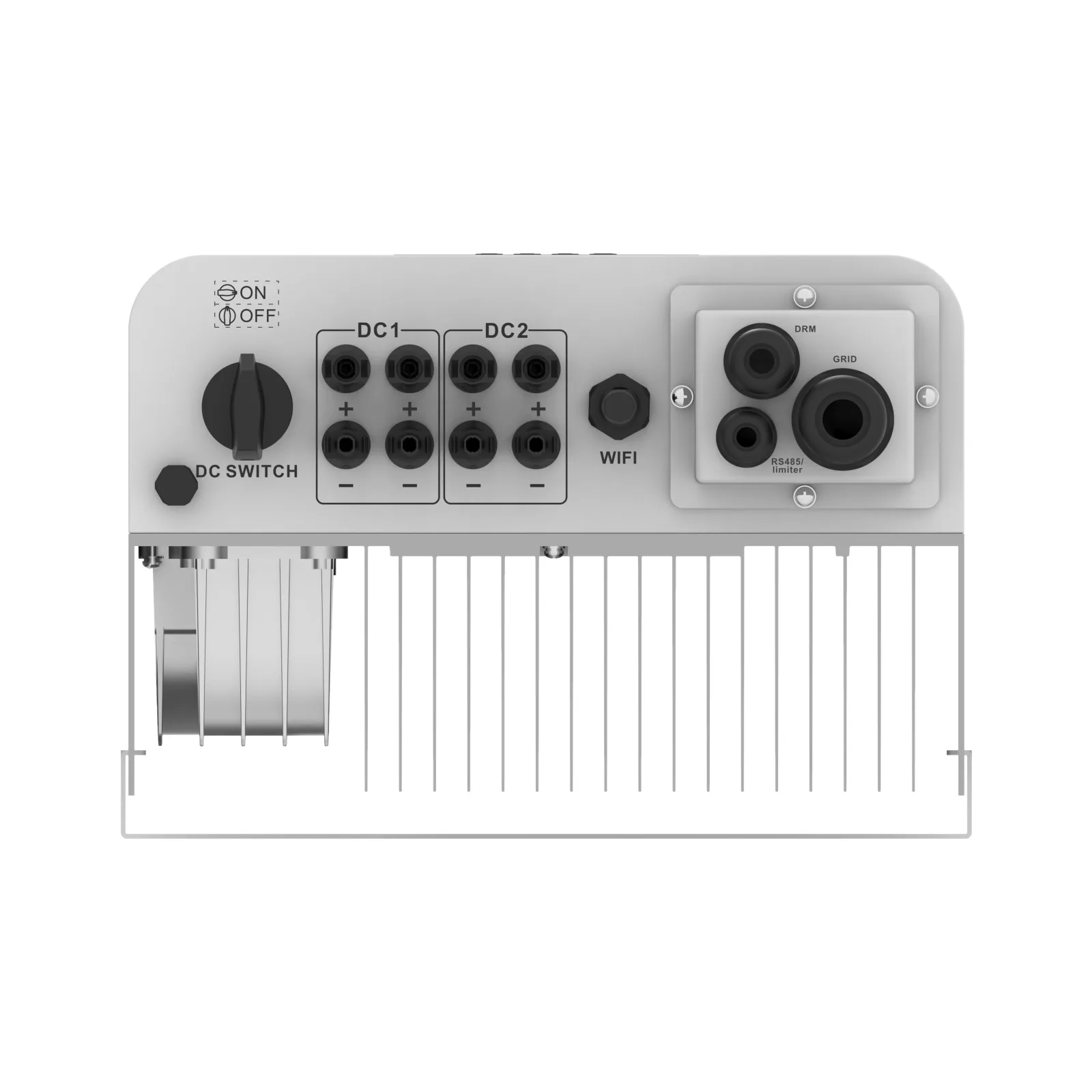

| Number of MPPT trackers | 2 | ||
| PV strings per MPPT | 2 | ||
| AC output | |||
| Rated output power (W) | 9000 | 10000 | 10500 |
| Max. apparent power (VA) | 9900 | 11000 | 11550 |
| Rated AC voltage (V) | 230 | ||
| Rated AC output current (A) | 39.2 | 43.5 | 45.7 |
| Max. AC output current (A) | 43.1 | 47.9 | 50.3 |
| Phase | Single-phase | ||
| Rated AC frequency (Hz) | 50/60 | ||
| Total harmonic distortion (THDi) (%) | <3 | ||
| Power factor | 0.8 leading to 0.8 lagging | ||
| Rated AC voltage options (V) | 220; 230 | ||
| AC voltage range | 0.85 Un-1.1 Un | ||
| Grid connection type | L+N+PE | ||
| Grid frequency range (50 Hz / 60 Hz) (Hz) | 45-55 / 55-65 | ||
| DC injection current | <0.5% In | ||
| Efficiency | |||
| Max. efficiency (%) | 97.7 | ||
| European efficiency (%) | 97.2 | ||
| MPPT efficiency (%) | >99 | ||
| Protection | |||
| Protection functions | DC reverse polarity protection; AC output overcurrent protection; AC output overvoltage protection; AC output short-circuit protection; Thermal protection; Insulation impedance detection; DC component monitoring; Arc fault circuit interrupter (AFCI) (optional); Anti-islanding protection; Residual current detection; DC switch | ||
| Surge protection level | Type II (DC), Type II (AC) | ||
| Anti-PID function | Optional | ||
| General data | |||

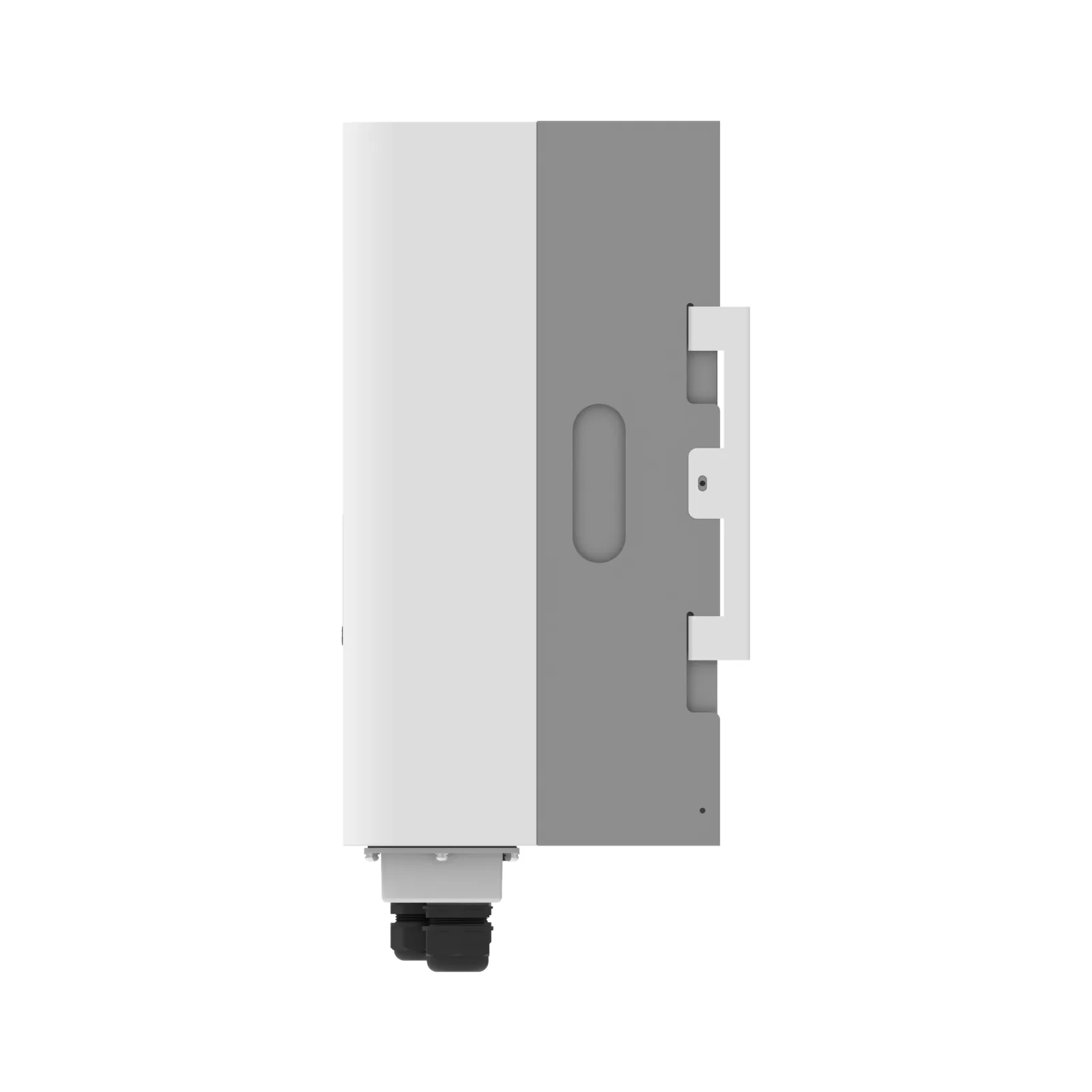

| Dimensions (W x H x D) (mm) | 330 × 410 × 213.5 | ||
| Weight (kg) | 14.8 | ||
| Ingress protection (IP rating) | IP65 | ||
| Operating temperature range (°C) | −25 – 60 | ||
| Relative humidity (%) | 0 – 100 | ||
| Max. operating altitude (m) | 3000 | ||
| Cooling | Natural cooling | ||
| Noise level (dB) | ≤35 | ||
| Topology | Non-isolated | ||
| Overvoltage category | OVC II (DC), OVC III (AC) | ||
| Warranty (years) | 5 | ||
| Communication | |||
| Display | LCD1602 | ||
| Communication interfaces | RS485; RS232; Wi-Fi; LAN | ||
| Monitoring | String intelligent monitoring (optional) | ||
| Certifications | |||
| Certifications and standards | IEC/EN 61000-6-1/2/3/4; IEC/EN 62109-1; IEC/EN 62109-2 | ||
| Grid codes | IEC 61727; IEC 62116; EN 50549; NRS 097; RD 140; UNE 217002; G99 | ||
Values from the manufacturer's datasheet, pending final confirmation. The datasheet supplied with the product prevails.
