SPE 8000-12000 ES

Name: SPE 8000-12000 ES
SKU: SPE 8000-12000 ES

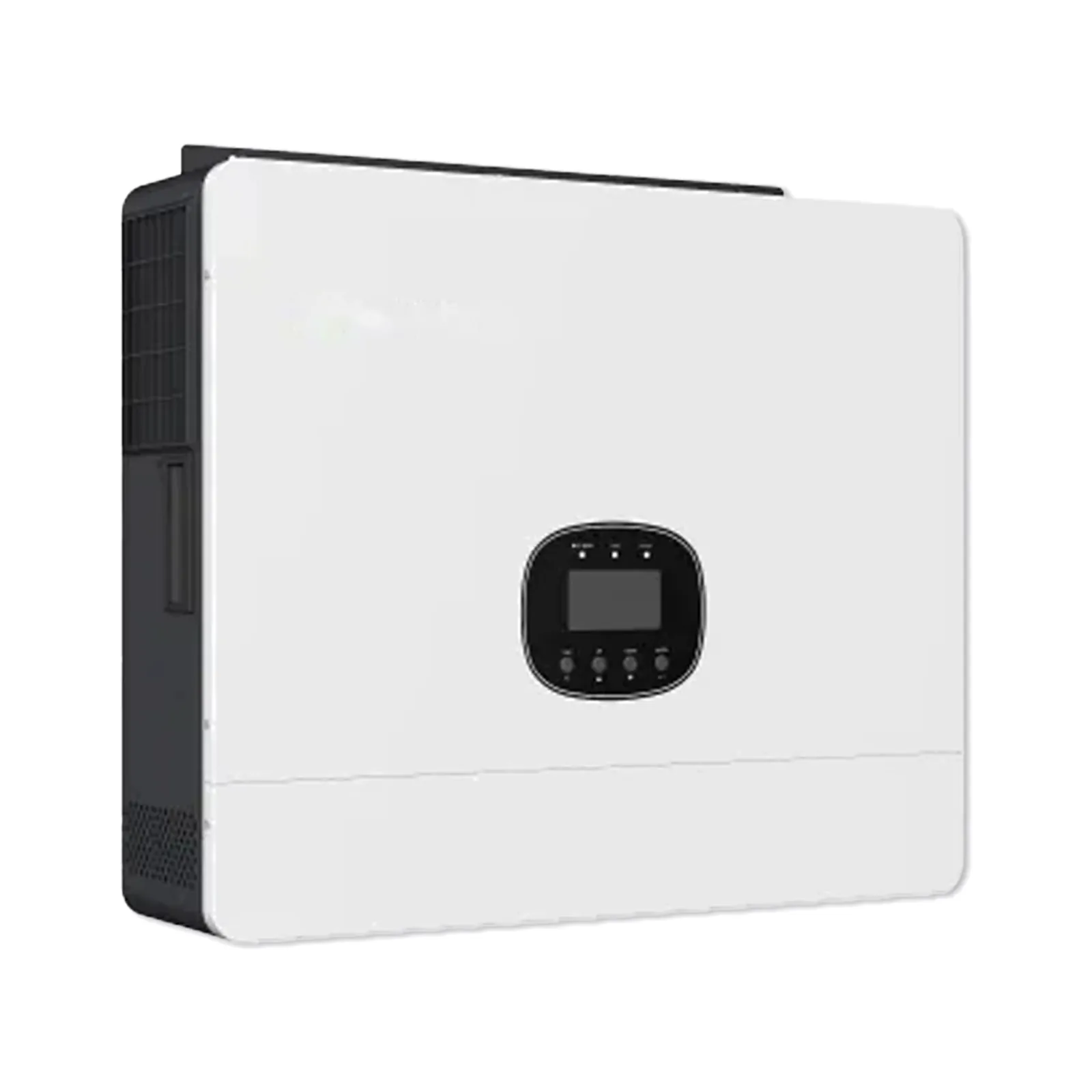

Hybrid inverter · Single-phase · 8 – 12 kW

8 – 12 kWSingle-phaseIP20

Price on request

8 – 12 kWRated power

Single-phasePhase

2MPPT trackers

96.5 %Max. efficiency

Technical data

PV input
	SPE 8000 ES	SPE 10000 ES	SPE 12000 ES
Max. PV input power (W)	10000	12500	15000
Max. PV input voltage (V)	550
MPPT voltage range (V)	60 – 480
Start-up voltage (V)	120
Max. input current per MPPT (A)	27
Max. short-circuit current per MPPT (A)	34
Number of MPPT trackers	2
PV strings per MPPT	1
AC output
Rated output power (W)	8000	10000	12000
Max. apparent power (VA)	8000	10000	12000
Rated AC voltage (V)	230
Rated AC output current (A)	34.8	43.5	52.2
Phase	Single-phase
Rated AC frequency (Hz)	50/60
Total harmonic distortion (THDi) (%)	<5
Power factor	0.8 leading to 0.8 lagging
Backup output power (W)	8000	10000	12000
Nominal AC output voltage (backup) (V)	230
Nominal AC output frequency (backup) (Hz)	50/60
Switch time	<20 ms (single unit); <30 ms (parallel)
Number of AC input terminals	2 (with integrated transfer switch)
Max. parallel capacity (kW)	108
Battery
Battery type	Lithium or lead-acid
Nominal battery voltage (V)	48
Max. charge current (A)	190	220	250
Max. discharge current (A)	200	240	280
Efficiency
Max. efficiency (%)	96.5
European efficiency (%)	95.5
General data
Dimensions (W x H x D) (mm)	550 × 465 × 150
Weight (kg)	21.5
Operating temperature range (°C)	−10 – 50
Relative humidity (%)	5 – 95
Max. operating altitude (m)	<2000
Noise level (dB)	<75
Night-time power consumption (W)	<75
Topology	Transformerless
Cooling	DC fan
Ingress protection (IP rating)	IP20
Communication
Communication interfaces	Wi-Fi; 4G
Certifications
Certifications and standards	CE
Grid codes	NRS 097
